10ml & 60ml factory price E liquid bottle filling machinery

This machine is the main parts of liquid filling line. It is mainly used for filling, (plugging), capping of eye drops, essential oil, e-liquid and e-juice. It adopts linear conveying, and peristaltic or piston pump filling, automatic feeder plugs and outer cover, touch screen interface, frequency control, and no bottle no filling and no plug function, filling without leakage with high degree of automation. The machine is reasonable in design and convenient to operate.

Model	filling machines
Bottles filling speed	10~70 bottles/min
Filling nozzle	2/4/6/8/12
Capping nozzle	1/2/4
Filling accuracy	+/- 1%
Power	Customized
Machine dimension	Customized
Machine body material	SUS304
Machine weight	Customized
Power supply	220V/380V accept customization

Product Application

It is mainly used for 30-200ml bottles filling, plugging and capping.

Control parts

Name: touch screen

Our machine touch screen is very good and mature brand.

Can adjust the speed on the touch screen

Optional function: adjust filling volume on touch screen

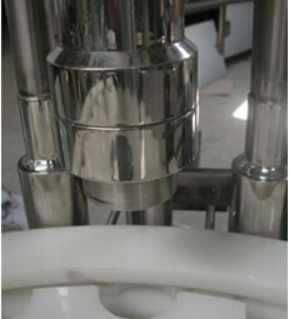

Filling parts

Name: filling pump

Machine have piston pump, peristaltic pump, and other type pump for choose. Can customized according to specific material.

Caps feeder parts

Name: vibration caps feeder

For small size caps or covers, we adopts vibrations types caps feeder. It is much more conveninet and economy.

Optionals caps elevator also suggest for choose

Different caps need changes different caps feeder

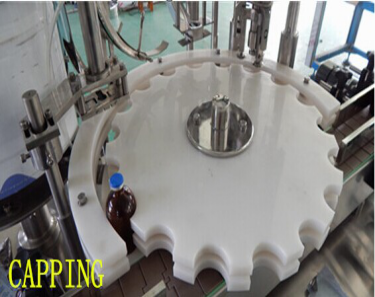

Screw caps parts

Name: capping nozzle

Brand: FESTO

Different caps need change different capping nozzle.

We also have crimping nozzle, suitable for metal caps.

We have higher speed clamshell machine also available

10ml & 60ml 3 in 1 factory price e liquid filling capping and labeling eliquid bottle filling machinery is CE certificate approved.

Your reliable and fist choose machine supplier

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Free samples testing

* View our Factory.

* Full sets spare parts

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* 7*24 hours online free services

Packing & Delivery

Packaging
Size	2400 (L) * 1350 (W) * 1600 (D)
Weight	500kg
Packaging Details	The normal package is packed by standard export ply wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

FAQ

Any problems of our machines, Welcome to contact us!

Q1. How to customize e liquid filling machine
A: Firstly, Show us all your bottles and caps size and shape, and the filling speed you need. Secondly, we offer you suitable solutions for choose. Thridly, Make decisions and begin machine production.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and after machine finished and machine checking TT70% before delivery.

Q3. Do I need send samples bottles for testing?
A: Certainly, it is necessary for machine customiztion.

Q4. How about your delivery time?
A: Generally, it will take 30-45 days after receiving your deposit payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or drawings.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery, we will also show you video before shipment.

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit; All machines is well tested before delivery. Full videos and manual book teaching using machine.

We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
