Good price 10ml 30ml 60ml e cigarette unicorn bottle liquid filling machine

Product Application

Suitable for all kinds of plastic bottles, glass bottles, round bottles, flat bottles.

Mainly used for automatic filling, plugging and capping of eliquid oil,oral liquid,eye drops,nail polish, eye shadow, perfume,essential oil,deodorant,alcohol and other liquid products.

Automatic-Rotary-Peristaltic-Pump-Bottle-Filling-Machine-4

Main Features

1)Touch screen and PLC control system,easy to operate and control.
2)Peristaltic pump filling, accurate metering, no leakage of liquid.
3)No bottle, no filling / no plugging / no capping.
4)Robotic arm capping system, stable and high speed, low failure rate, prevent bottle cap damage.
5)Production speed can be adjusted.
6)Wide range of use, can be used to replace the mold for different bottles filling.
7)The main electrical components of this machine are all used by famous foreign brands.
8)The machine is made of 304 stainless steel material, easy to clean, and the machine meets the requirements of GMP.
9)Automatic bottling feeding-Bottle filling--Inner lid plugging--Outer lid capping-Bottle labeling

Model
NP
Filling range
10-100(can be customized)
Filling speed
40-50 BPM(based on filling material and volume)
Measurement accuracy
±1%
Power, voltage
1500W 220V/50HZ(can be customized)
Filling capping heads
2 filling heads,1 inner plug,1 outer cap
Air consumption
0.5-0.7MPA
Machine dimension
2200*1500*1750mm
Net weight
500kg

Product details

Rotary Table

Compact structure, small area and high efficiency.

The mold can be replaced for different size of the bottle.

Filling Heads

Peristaltic pump filling，accurate filling and easy cleaning.

The number of the filling heads depends on the capacity of the production and the bottle volume.

Robotic arm cap loading system

The structure is novel and advanced, which can improve the accuracy and stability of loading cap and improve the efficiency of production.

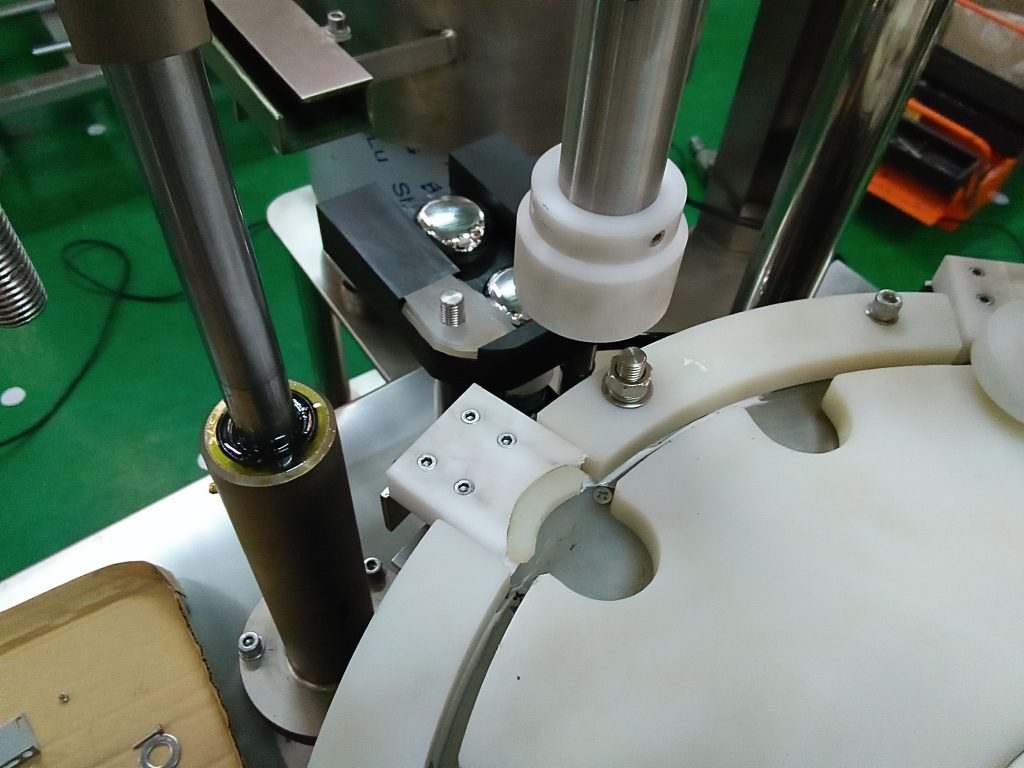

Screw Capping Heads

Suitable for plastic screw cap,sealing effect is good.

Aluminum Screw Capping Heads

Specially suitable for sealing of aluminium threaded cover.

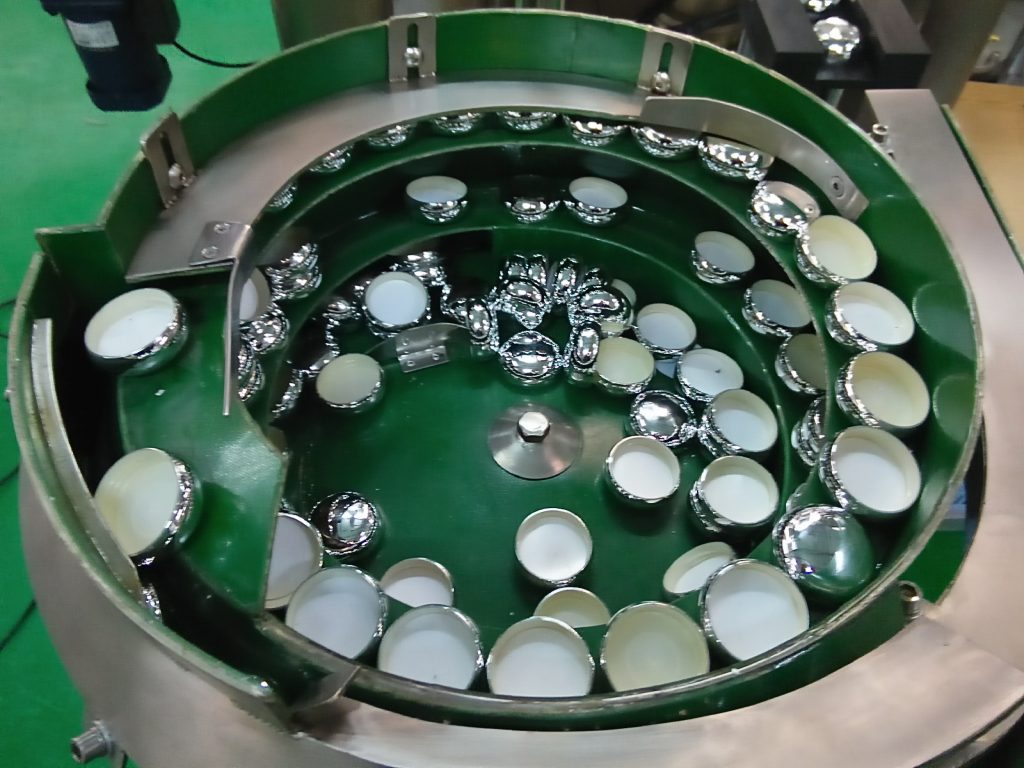

Automatic Cap Feeding Device

Use vibration to arrange and transfer lids.

Simple use of structure, economical and practical.

Touch Screen

Mitsubishi PLC,Weinview touchscreen.

Easy to control and operating.

Automatic Bottle Unscrambler

Automatic bottle sorting and feeding,save labor cost.

Machine Assembling And Testing Area

All machines are strictly tested before they leave the factory.

Application

Mainly used for automatic filling, plugging and capping of eliquid oil,oral liquid,eye drops,nail polish, eye shadow, perfume,essential oil,deodorant,alcohol and other liquid products.

FAQ

Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How do you offer technical support?
A4: 1.Technical support by phone, email or whatsapp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
Q5:How do you work your after sales service?
A5:Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
And You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Q6: How about the spare parts?
A6: After we deal down all the things , we will offer you a spare parts list for your reference.
