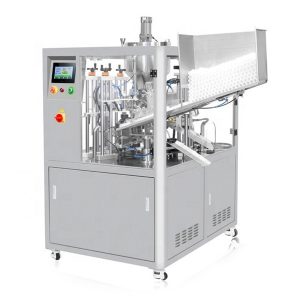

Ultrasonic sealing cosmetic tube filling machine

SPECIFICATIONS FOR ULTRASONIC TUBE FILLING SEALING MACHINE
Sealing Dia	5-50mm
Output power	2000W
Voltage	AC220V/single phase 50/60HZ
Machine weight	230kgs
After packaging	280kgs
Machine size	1300*900*1550mm
Filling Range	A:6-60ml, B:10-120ml,C:25-250ml,D:50-500ml (Customer made available)
Control Style	PLC control
Time adjust	electronic adjust
Packaging	Plywooden case packaging

Name: Auto Loading system
Material : Made of stainless steel 304 ,surface by plating
More durable and keep long time

Name: Mark Sensor
Brand: Pannasonic
Original: Japan
Tube Orientation
(R · G · B) LED in high-precision mode, high resolution of R / G · B ratio of reflected light through high-resolution by using built-in 12bitA / D converter can achieve high resolution of 1 / 4,000 Accuracy judgment, determine the color of the color. But also can effectively detect the color around those with patterns and patterns such as film.

two way sealing stations ,can make the end of tubes sealing result are good and beautiful

Name: Sealing Horn
Made of aerospace aluminum
High precision
Sealing and Printing at the same time
Can be Filled date code ( Arabic numerals or English letter)
Free to change date code

Name: dividing rule

Assist to adjusting height of each working station according to tube size

Name: Filling Nozzle

Anti-drip filing nozzle

suitable for high viscosity materials filling

Made by 304 stainless steel

Name: Working Station

Qty: 10 working stations

Tube Holder Made by POM,more durable for using and changing

Name: Two-way cutter
For tube end trimming
Made by 304 stainless steel
No burrs after trimming
More durable

Name :intenlligent digtal ultrasonic generator

It can tracking the ultrasonic frequency automatic accoridng to the differnt material tube material ,do not need adjust by manual

Name :PLC touch screenBrand :weinview

Easy operation touch screen for quick setting.

Main Features

1. Easy to operate and maintain.
2. Automatic positioning, filling, welding, cutting and trimming, printing code in one time.
3. Stainless steel machine body, strong and beautiful looks,
4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
5. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
6. Ultrasonic frequency can meet international standard, no harmful to human being or environment
7. Can be work in time, not need wait the heat time .

Advantages

1. It adopts Ultrasonic sealing machine , good for difference products, Such as food, medical, cosmetic products. It will not hurting the products.
2. Overload protection, phase separation protection, power-fail protection.
3. Large Ultrasonic output power to ensure the sealing quality of various tube size and material.
4. With tube end trimming
5. Easy change working mold for difference tube diameter
6. Adjustable tube length
7. Machine include a gear pump filler( Good filling precision+- 1)

Packing

We use ply-wood case for packing machines, it will meet export standard like safety, protection requirement and durable performance in long time shipping by sea or air, our package no need fumigation.

Delivery

For machine is big and heavy parcel, and different country with different delivery cost. And the best delivery we suggest is by sea, so the delivery cost will be depended on your destination port. The price show on the website just the machine EXW price, please understand.

FAQ

Q: Are you trading company or manufacturer ?
A: Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What about your warranty?
A: Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before

Pre-sale services:

1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.

Sale of services:

1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.

2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.

After-sales service:

1. Where to buy our products for 1 years warranty and life long maintenance.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.
4. Engineer can service door to door.
